Oase BioTec ScreenMatic 90000

Description

BioTec ScreenMatic 90000 from Oase

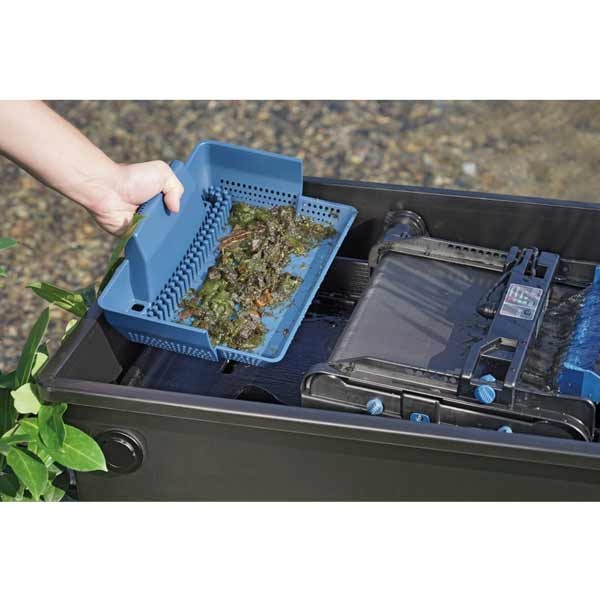

The BioTec ScreenMatic 90000 is a highly effective flow-through filter for ponds up to 90 m3 which requires significantly less maintenance, thanks to coarse debris extraction.

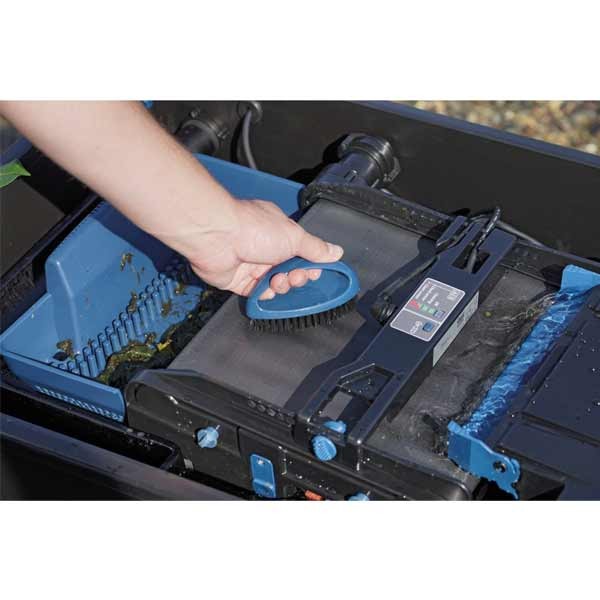

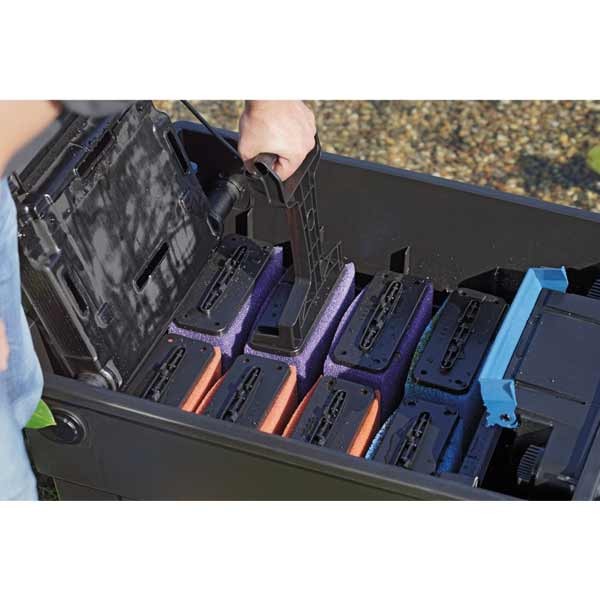

Designed with convenience in mind, the filter sponges can be cleaned directly inside the filter. Featuring a sludge drain with slide valve for removing debris from the filter system.

The BioTec ScreenMatic uses different filter media to ensure optimum colonisation of bacteria for biological filtration.

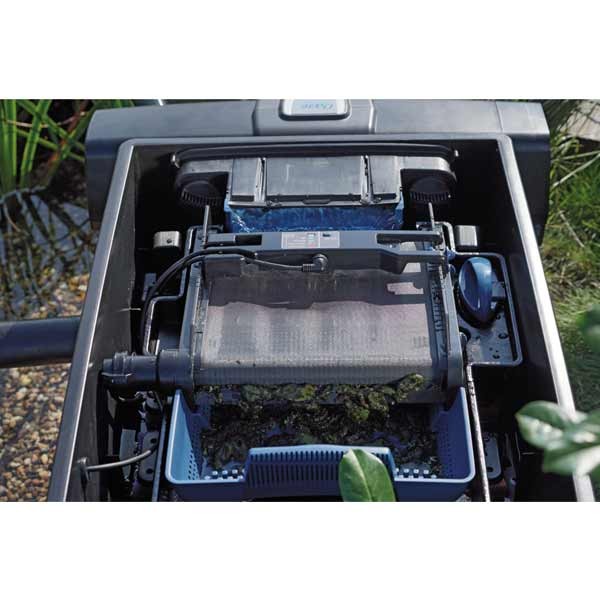

The filter belt is automatically driven by an adjustable automatic cleaning system, which controls the belt run based on the degree of contamination, including LED function check.
The water is uniformly distributed across the belt filter which prevents the risk of the pump clogging.

The BioTec ScreenMatic has been made with a reinforced strap material and has a double-sealed motor for an extended service life.
Perfectly tailored to the Oase AquaMax Eco filter pumps. The BioTec ScreenMatic can be directly connected to the Oase UVC clarifiers of the Vitronic 18W/24W/36W, Bitron C and Bitron Eco series.

Specifications:
Dimensions: L788 x W590 x H645 mm
Rated voltage: 230 V / 50 Hz
Power consumption: 5W
Power cable length: 2 m
Total number of filter foams: 16
Number of blue filter foams: 4
Number of red filter foams: 6
Number of purple filter foams: 6
Coarse debris extraction: 300 µm
Connection inlet filter: 25/38/50 mm
Maximum flow rate: 12500 litres/hour
Suitable for ponds up to: 90 m3
Suitable for ponds with fish stock: 45 m3
Suitable for pond with koi: 22 m3

Features:
Highly effective flow-through filter
Requires minimal maintenance
Coarse debris extraction
Self cleaning filter belt
Designed to be convenient & practical
Ensures optimum colonisation of bacteria
LED function check
Clean & tidy system
Reinforced strap material
Double-sealed motor
Long Service life
